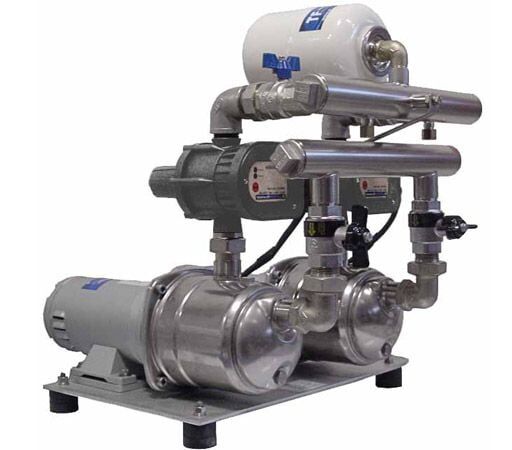

AX SET EC WATER PRESSURE SYSTEM 0,30 + 0,30 KW, 12VDC
AX SET EC WATER PRESSURE SYSTEM
ITS BACKGROUND
This is a group of WPS for water
distribution – included with a
device for automatic control and
protection. This enables it to give
constant pressure during the water
supply thanks to the sensors which
are controlled by an electric board.
We suggest to install a 20l tank
which will give better performance.
As the WPS is based on a selfpriming
el/pump, we suggest to fill
the pumps with liquid before first
use or after the el/pump has been
stopped for a long period.
WHY SHOULD I BUY THIS FAN?
Giving outstanding performance
and an additional supply of water.
Complete with a 2l butyl membrane
tank , electronic water switch in
techno polymer, manometer, no
return valve and a stainless steel
base with rubber mounts.
Before shipment, this WPS is set
and tested in factory.
| DIMENSIONS | H(MM) | D(MM) | W(MM) | KG |
|---|---|---|---|---|
| AX SET-EC 1 DC | 600 | 570 | 560 | 40 |
| AX SET-EC 2 DC | 600 | 570 | 560 | 40 |
| AX SET-EC 2 AC | 600 | 570 | 560 | 38 |
| AX SET-EC 4 DC | 620 | 730 | 560 | 50 |
| AX SET-EC 4 AC | 620 | 700 | 506 | 46 |
| AX SET-EC 5/18 DC | 670 | 850 | 630 | 76 |
| AX SET-EC 5/18 AC | 670 | 790 | 630 | 62 |
| AX SET-EC 6/22 AC | 730 | 830 | 680 | 67 |
